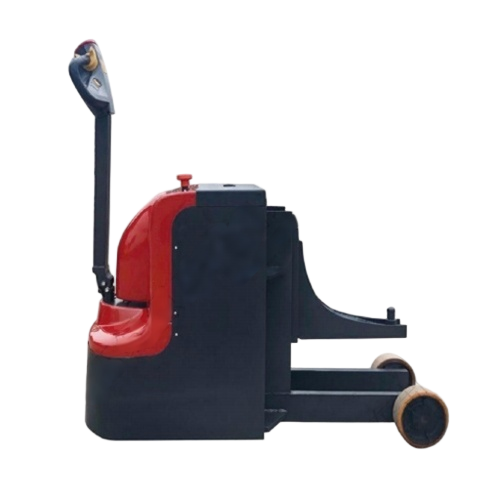

| Basic parameters | 1 | Product model | CBD30Q | |
| 2 | Drive form | Electric | ||
| 3 | Driving method | Pedestrian mode | ||
| 4 | Rated load | kg | 3000 | |
| 6 | Wheelbase | 皿 | 1210 | |
| 7 | Self-weight (including battery) | kg | 750 | |
| Wheel | 1 | Tire | Polyurethane | |
| 2 | Drive wheel dimensions (diameter × width) | m | 0250×80 | |
| 3 | Front wheel dimensions (diameter × width) | m | 0200×80 | |
| 5 | Number of wheels (front) (x = driving wheels) | 1x+2 | ||
| 6 | Front wheel spacing | m | 410 | |
| Basic dimensions | 1 | Total height | m | 1270 |
| 3 | Lifting height | m | 450 | |
| 6 | Overall vehicle length | m | 1480 | |
| 7 | Overall width of the vehicle | m | 715 | |
| 10 | Minimum ground clearance | m | 60 | |
| 12 | Turning radius | m | 1450 | |
| Performance | 1 | Driving speed (loaded / unloaded) | km/h | 4.5/5.5 |
| 2 | Maximum lifting speed without load | m/s | 50 | |
| 3 | Carrying the maximum lifting speed | mm/s | 40 | |
| 4 | Maximum climbing capacity with load / without load | % | 3/5 | |
| 5 | Braking method | Electromagnetic braking | ||
| Electrical | 1 | Drive motor power | kw | AC1.5 |
| 2 | Increase the power of the motor | kw | DC2.2 | |
| 3 | Battery voltage / capacity | V/Ah | 24V/210Ah | |
| The above parameters are for reference only. The manufacturer reserves the right to modify the parameters according to actual needs. | ||||
