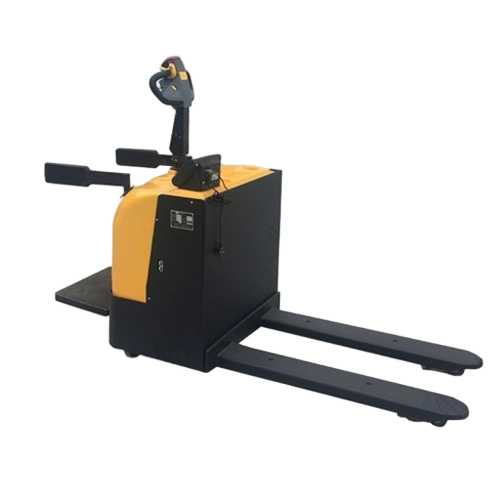

LYEA Compact Electric Stacker Truck - Smart Warehouse Material Handling Solution
Product Overview:
The LYEA electric stacker truck series revolutionizes warehouse material transport with its space-saving design and zero-emission electric operation. Engineered for efficiency and reliability, these compact electric forklifts deliver exceptional performance in narrow aisles and confined spaces while maintaining powerful lifting capabilities.
Key Features & Benefits:
Advanced Electric Drive System
High-efficiency 48V/72V lithium-ion battery options
Regenerative braking with 15-20% energy recovery
Maintenance-free AC motor (30,000+ hour lifespan)
Ultra-quiet operation (<65dB) for noise-sensitive environments
Space-Optimized Design
Ultra-compact chassis (only 800mm width)
Low-profile construction (under 2m height)
360° omnidirectional wheels for tight maneuvering
Industry-leading 1,400mm turning radius
Precision Load Handling
1,000-2,500kg capacity options
Up to 6m lift height (3-stage mast available)
±2mm positioning accuracy
Integrated load stabilization system
Operator-Centric Features
Intuitive thumb controls with adjustable sensitivity
Ergonomic tiller arm (70°-90° adjustable)
Anti-fatigue standing platform
270° visibility for safe operation
Technical Specifications:
| Model | LYEA-1000 | LYEA-1500 | LYEA-2000 |
|---|---|---|---|
| Capacity | 1,000kg | 1,500kg | 2,000kg |
| Lift Height | 3.5m | 4.5m | 5m |
| Battery | 48V/210Ah | 48V/280Ah | 72V/320Ah |
| Travel Speed | 6km/h | 5.5km/h | 5km/h |
| Turning Radius | 1,400mm | 1,500mm | 1,600mm |
