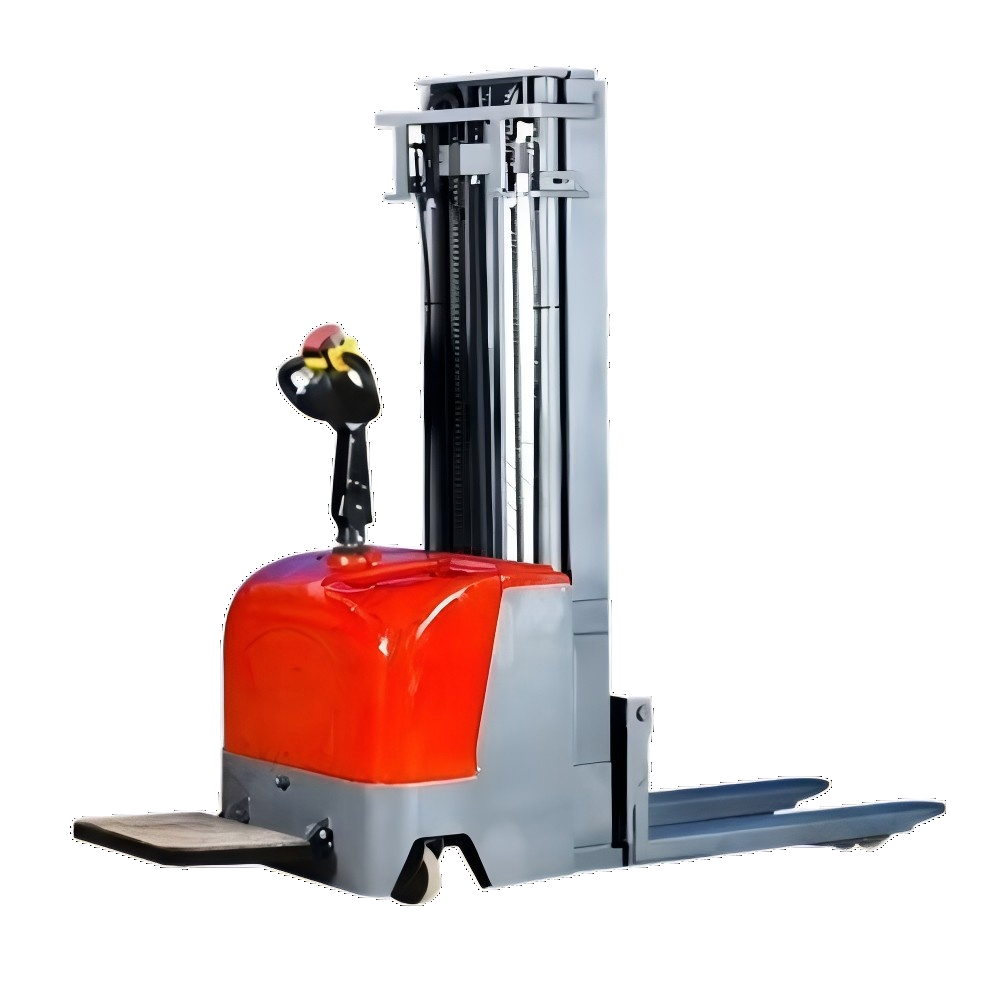

Station driving forward moving stacker
Station driving forward moving stacker
Station driving forward moving stacker

Station driving forward moving stacker

Get Latest Price
Min. Order:1
Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Forward moving all electric stacker
90° rotating counterweight clamping stacker crane
Product Description

Heavy-Duty Station Driving Stacker - Advanced Logistics Solution

Product Overview:
Our heavy-duty station driving stacker revolutionizes industrial material handling with its unique combination of stationary precision and forward motion capability. Designed for demanding logistics operations, this electric-powered stacker delivers exceptional performance in multi-level stacking applications while maintaining energy efficiency and operator comfort.

Key Features & Benefits:

  1. Dual-Mode Operation

  • Stationary mode for precise load positioning (±1mm accuracy)

  • Forward motion capability for flexible material transport

  • Seamless transition between operation modes

  1. Industrial-Grade Construction

  • Reinforced steel frame (10mm thickness)

  • Heavy-duty mast design (8,000+ hour lifespan)

  • Corrosion-resistant components

  • IP54 rated electrical systems

  1. Electric Drive System

  • 48V/72V lithium-ion battery options

  • Regenerative braking (20% energy recovery)

  • Maintenance-free AC motor

  • Ultra-quiet operation (<65dB)

  1. Multi-Level Stacking Performance

  • Lift heights up to 6 meters

  • 1,000-2,500kg capacity options

  • Precision height control (0.5mm increments)

  • Integrated load stabilization

Technical Specifications:

Model HDS-1500 HDS-2000 HDS-2500
Capacity 1,500kg 2,000kg 2,500kg
Lift Height 5m 5.5m 6m
Travel Speed 6km/h 5.5km/h 5km/h
Battery 48V/280Ah 48V/320Ah 72V/360Ah
Turning Radius 1,600mm 1,700mm 1,800mm
